The Rotel RA-1592MKII DAC Chip is a powerhouse in the world of high-fidelity audio, combining premium amplification with cutting-edge digital-to-analog conversion. The key to its performance lies in its Texas Instruments 32-bit/384kHz DAC chip, a critical upgrade from its predecessor. This article explores the technical prowess of the Rotel RA-1592MKII DAC chip, its impact on sound quality, and why this integrated amplifier remains a top choice for audiophiles.
You May Like: Dragonfly Red vs Black: Audiophile Showdown

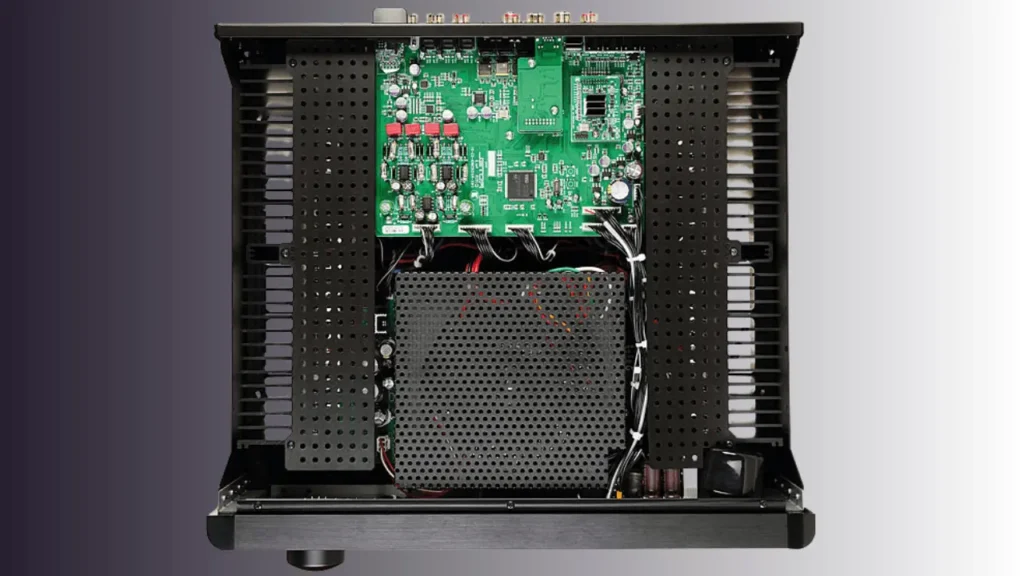

The Evolution of the Rotel RA-1592MKII DAC Chip
From AKM to Texas Instruments: A Strategic Shift
The original Rotel RA-1592 used an AKM 32-bit/768kHz DAC, which supported DSD (Direct Stream Digital) playback. However, the MKII version replaced it with a Texas Instruments (TI) DAC chip, primarily due to supply chain disruptions caused by the 2020 AKM factory fire28. While this meant the loss of native DSD support, Rotel compensated by introducing MQA (Master Quality Authenticated) decoding, a feature more relevant to modern streaming services like Tidal.
Key Features of the Texas Instruments DAC
The Rotel RA-1592MKII DAC chip is designed for high-resolution audio, supporting:
- PCM up to 32-bit/384kHz
- MQA full decoding (up to 24-bit/384kHz via USB)
- Precision-tuned output filters for enhanced soundstage and imaging
Rotel engineers optimized the DAC’s signal path and power supply, reducing noise and improving dynamic range. The result? A cleaner, more detailed sound with unprecedented acoustic precision.
Why the Rotel RA-1592MKII Stands Out as a Flagship Integrated Amplifier
Power and Performance
The RA-1592MKII is a Class A/B amplifier delivering:
- 200W per channel (8Ω)
- 350W per channel (4Ω)
- THD (Total Harmonic Distortion) of <0.008%
Its dual-mono design and slit-foil capacitors ensure tight bass control while the toroidal transformer provides stable, noise-free power delivery.
Check Out: OPPO Sonica DAC Network Player Review
Versatile Connectivity
This amplifier is a true all-in-one solution, featuring:
- Analog inputs (RCA/XLR)
- MM phono stage for turntables
- Bluetooth (aptX & AAC)
- Multiple digital inputs (Coaxial, Optical, USB)
- Roon-tested certification for seamless streaming integration
Sound Quality: Neutral, Dynamic, and Engaging
Reviewers praise the RA-1592MKII for its neutral yet engaging sound signature. It excels in:
- Wide soundstage and precise imaging
- Rich midrange and controlled bass
- Smooth treble without harshness211
When paired with high-end speakers like the Sonus Faber Minima Amator or Vienna Acoustics Beethoven Baby Grand, the amplifier reveals exceptional detail and musicality.
Final Verdict: Is the Rotel RA-1592MKII Worth It?
The Rotel RA-1592MKII is a no-compromise integrated amplifier that balances power, precision, and versatility. Its Texas Instruments DAC chip ensures high-resolution playback, while its Class A/B amplification delivers authoritative, distortion-free sound.
For audiophiles seeking a single-box solution that handles vinyl, digital streaming, and high-power amplification, the RA-1592MKII is a top-tier choice, proving that Rotel continues to deliver exceptional value in high-end audio
Rotel RA-1592MKII: Full Specifications
Amplifier Specifications
Power Output
- 200W per channel (8Ω, 20Hz–20kHz, <0.03% THD)
- 350W per channel (4Ω, 1kHz, <0.03% THD)
- Damping Factor: >200 (ensures tight bass control)
Amplifier Design
- Class A/B amplification (for efficiency and warmth)
- Dual-mono construction (separate power supplies for left/right channels)
- Toroidal power transformer (low noise, high current delivery)
- Slit-foil capacitors (fast transient response)
Total Harmonic Distortion (THD) & Signal-to-Noise Ratio (SNR)
- THD: <0.008% (20Hz–20kHz, 8Ω, 200W)
- SNR: >110dB (line input, A-weighted)
DAC & Digital Audio Specifications
DAC Chip & Resolution Support
- Texas Instruments 32-bit/384kHz DAC (replacing the previous AKM chip)
- Supports MQA (Master Quality Authenticated) full decoding (via USB)
- PCM Support: Up to 32-bit/384kHz
- No native DSD playback (due to TI DAC implementation)
Digital Inputs
- USB-B (PC/Mac, up to 32-bit/384kHz & MQA)
- Optical (Toslink, up to 24-bit/192kHz)
- Coaxial (up to 24-bit/192kHz)
Digital Filters & Processing
- Custom-designed low-jitter clock (for precise timing)
- Multiple oversampling filters (for smooth high-frequency response)

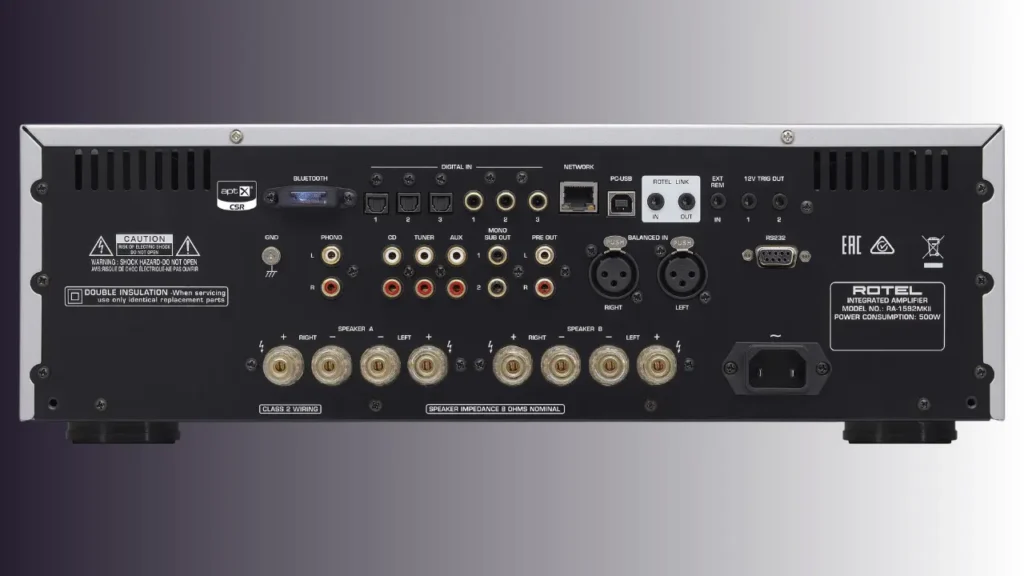

Analog & Connectivity Specifications
Analog Inputs
- 5× RCA line-level inputs
- 1× XLR balanced input
- 1× MM phono input (for turntables)
Outputs
- Pre-out (RCA, fixed/variable)
- Headphone output (6.35mm jack, high-current amp)
- Subwoofer output (RCA, for 2.1 setups)
Wireless & Streaming
- Bluetooth 4.2 (aptX & AAC support)
- Roon Tested certification (for seamless integration with Roon-ready devices)
Physical & Operational Specs
Dimensions & Weight
- Width: 431 mm (17″)
- Depth: 420 mm (16.5″)
- Height: 176 mm (6.9″)
- Weight: 22.5 kg (49.6 lbs)
Power Requirements
- Voltage: 120V/230V (switchable)
- Power Consumption: 650W (max)
- Standby Power: <0.5W
Included Accessories
- Remote control
- Power cable
- User manual
Conclusion: A High-Performance All-in-One Amplifier
The Rotel RA-1592MKII combines high-power amplification, a high-end DAC, and extensive connectivity in a single chassis. While it no longer supports native DSD playback, its MQA decoding, ultra-low distortion, and robust power output make it a top-tier choice for audiophiles who want a one-box solution for vinyl, digital streaming, and high-fidelity playback.
